Logging with Serilog and Seq

April 28, 20208 Min Read
Having a robust logging system is crucial for any application. There are many tools, and one of these is Serilog. Here you'll learn how to use it in a .NET application and how to integrate it with Seq.

One of the most important things to consider when developing and application is logging: not only it is useful for tracking errors and check if the system works correctly, but also it helps you with additional info about the status of the application in a particular point of the code, making it easier to debug the application.

Serilog is an open source .NET library for logging. One of the best features of Serilog, as you can see in its homepage, is that messages are in the form of a template and you can easily format a value using its default formatter instead of calling ToString() for each value.

var position = new { Latitude = 25, Longitude = 134 };
var elapsedMs = 34;

log.Information("Processed {@Position} in {Elapsed:000} ms.", position, elapsedMs);

will capture a JSON like

{
   "Position":{
      "Latitude":25,
      "Longitude":134
   },
   "Elapsed":34
}

Of course, those logs must be collected somewhere. You can use even the console or a database if you want; otherwise, you can use an external platform.

One of my favorite logging platforms is Seq: developed by Datalust, Seq collects logs and allows you to search and analyze the records. The interesting thing is that, under the hood, those data are stored as JSON: this means that you can perform queries against them and get the results easily.

Good thing: for a single user, it is free. So, let's try it!

Downloading Seq locally

I work on Windows 10: that's why I'm gonna download the .msi installer from the download page.

Once downloaded, you must follow the wizard to have it installed locally. At the end of the installation, you will have it live on your localhost, in my case at localhost:5341.

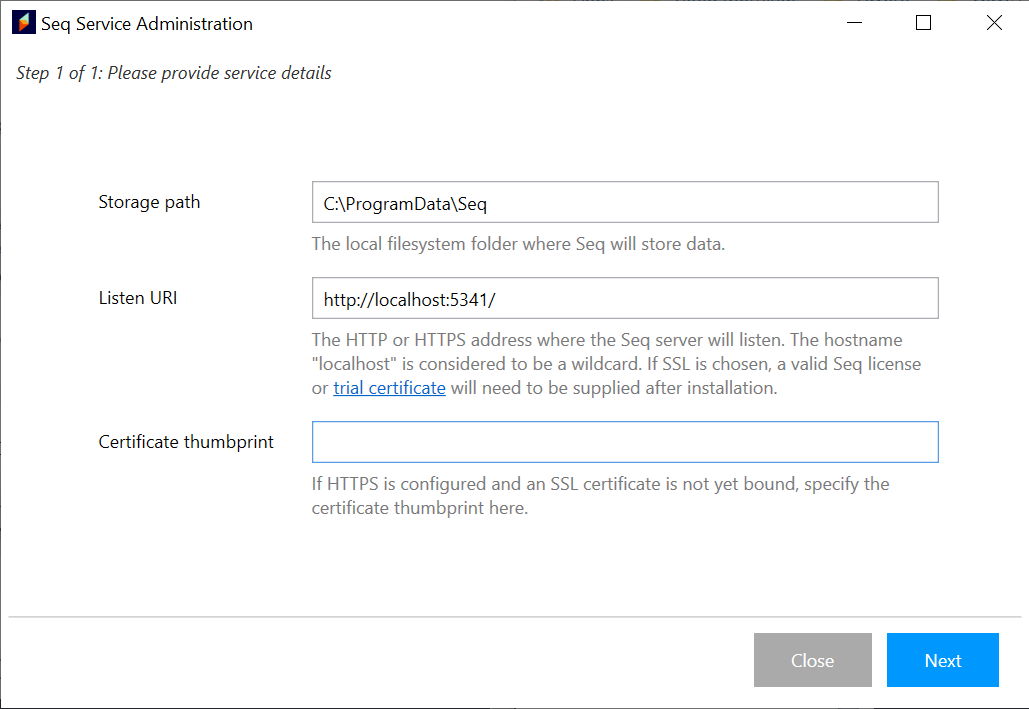

Seq wizard allows also to set the port used on your localhost

Once the installation has finished, and you have started the service, you can see the newborn instance on Seq on your browser.

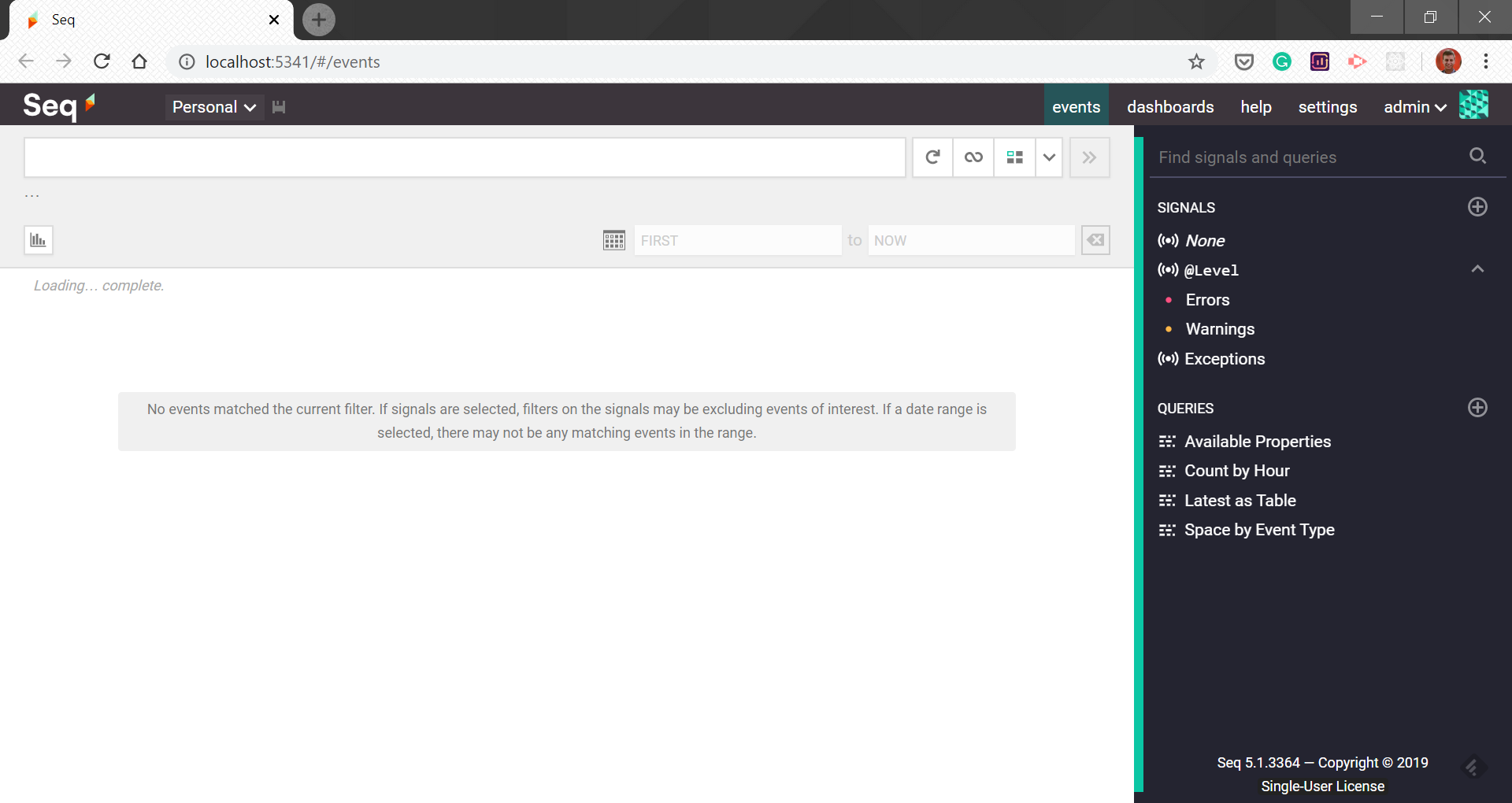

Seq dashboard homepage

For now, we are ready. The next step is to create the application.

Creating the application

I've created a simple Web Application with .NET Core.

Since we need Serilog, we must download it. You can run dotnet add package Serilog --version 2.9.0 on the .NET CLI or, if you prefer the Package Manager command line, you can run Install-Package Serilog -Version 2.9.0. Of course, you can use the NuGet UI on Visual Studio.

Downloading the Serilog library is not enough: we need to install the sink (its name for the log collector) for Seq: you must install Serilog.Sinks.Seq (again, with dotnet add package Serilog.Sinks.Seq --version 4.0.0 or Install-Package Serilog.Sinks.Seq -Version 4.0.0). Of course, the versions for Serilog and Serilog.Sinks.Seq are the latest available at the time of writing, so probably you'll have to download different versions of those packages.

Now we're ready to instantiate the logger: within the ConfigureServices method in the Startup class, you need to create the new logger, declare that it must write to localhost, and finally add the dependency.

public void ConfigureServices(IServiceCollection services)
{
   services.AddControllersWithViews();

   Log.Logger = new LoggerConfiguration()
            .WriteTo.Seq("http://localhost:5341/")
            .CreateLogger();

   services.AddSingleton<Serilog.ILogger>(Log.Logger);
}

Of course, you can use Dependency Injection to inject this logger to any kind of application, like a Web Application or an Azure Function.

Sending your first log

Now it's time to write our first log!

In the constructor of our class (in my case, HomeController), you must inject the dependency to Serilog.Ilogger.

Serilog.ILogger _logger;

public HomeController(Serilog.ILogger logger)
{
   _logger = logger;
}

and, in the Index action, we can add _logger.Information("Hello, SEQ");.

Just run your application, and you'll see the message in the Seq panel.

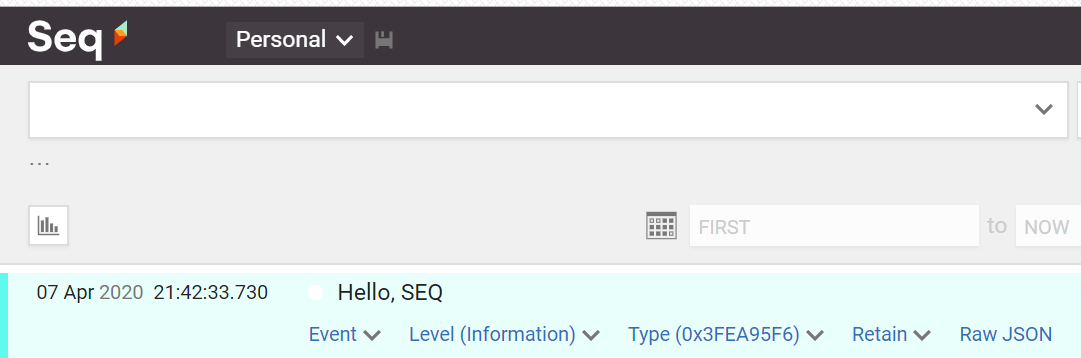

Information logged

As you can see, your message is displayed with some additional info, such as the date and time of the event and the level (of course, since we used _logger.Information, the level value is Information). The last thing to notice is the Raw JSON button: by clicking on it, you can download the inner JSON representation of the log, which can help you understand what happened.

Serilog supports various logs with different levels of criticalities; we've already seen Information, but we can also have Verbose, Debug, Warning, Error and Fatal. Each level has a specific meaning:

Level Usage
Verbose Verbose is the noisiest level, rarely (if ever) enabled for a production app.
Debug Debug is used for internal system events that are not necessarily observable from the outside, but useful when determining how something happened.
Information Information events describe things happening in the system that correspond to its responsibilities and functions. Generally these are the observable actions the system can perform.
Warning When service is degraded, endangered, or may be behaving outside of its expected parameters, Warning level events are used.
Error When functionality is unavailable or expectations broken, an Error event is used.
Fatal The most critical level, Fatal events demand immediate attention.

So, just as we did for _logger.Information("Hello, SEQ");, we can log a message with a different level, like _logger.Error("An error occurred") that will be rendered as displayed in the following image:

Error logged

You might want to define a minimum level of log to be stored: usually, levels like Debug and Verbose are fine for Develop and Staging environments, but for not for the Production environment. You can define the minimum level in the Startup class:

Log.Logger = new LoggerConfiguration()
               .MinimumLevel.Warning()
               .WriteTo.Seq("http://localhost:5341/")
               .CreateLogger();

This way we define that we want to log only events with level Warning, Error or Fatal. All the other levels will be ignored.

Enriching logs

Sometimes you want to add for each log a set of properties that are shared across your application, like the name of your project or the environment. Serilog allows you to do that using Enrichers. While you can create your own, you can use predefined enrichers: simply add .Enrich.WithProperty(PropertyName, PropertyValue) in your logger definition.

Log.Logger = new LoggerConfiguration()
         //  .MinimumLevel.Warning()
         .Enrich.WithProperty("Project", "SeqIntegrationExamples")
         .Enrich.WithProperty("Environment", "Local")
         .WriteTo.Seq("http://localhost:5341/")
         .CreateLogger();

Now, for every log, we can see also the Project and the Environment properties. Of course, the values can be dynamically taken by a configuration file.

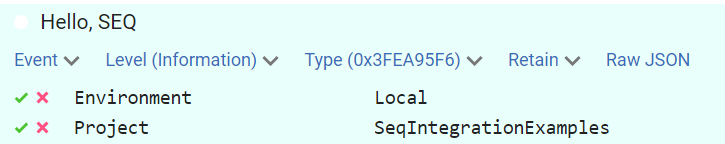

Enriched values are displayed and can be queried

Formatting strings

As shown at the beginning of this article, one of the features of Serilog is the possibility to format the strings as Structured Data. This means what when we log something, we can insert in the message a placeholder for each property that we want to track: this value will be replaced in the final string, and the field can be queried in Seq.

So, if we write

_logger.Information("A message generated by {AuthorName}", "Davide");

in Seq we will see A message generated by Davide, and, by clicking on the log, we can look at the key-values fields.

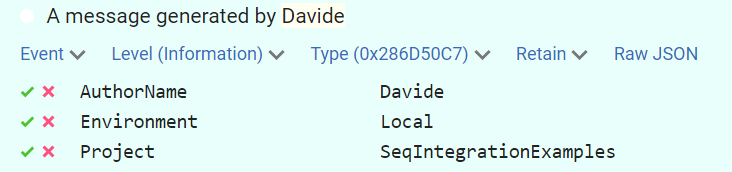

String interpolation result

Of course, we can add more fields to a message.

Also, you can format automatically the output of those values: for instance, you can format a DateTime object as you would do with String.Format, and you can also pretty-print objects inheriting from IEnumerable, like arrays and Lists.

List<string> topics = new List<string> { "C#", ".NET", "Logging" };

_logger.Information("Another message generated by {AuthorName} - Today is {Today:yyyy-MM-dd} and I'm talking about {Topics}","Davide", DateTime.Now.Date, topics);

will result in

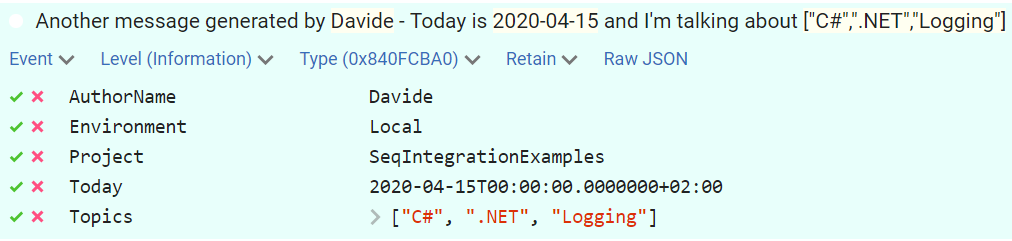

String interpolation with complex values

As you can see, the Date has been pretty-printed in the preview, while in the detail of the item the date is full. Also, the List<string> can be expanded in the item details.

Why is this functionality useful? As I touched upon before, these logs can be filtered. You can use a SQL-like syntax to retrieve all the logs that match the filter you defined. So, if in the query textbox on the Seq panel you set "AuthorName = "Davide", you'll get only the logs that have the field AuthorName specified and whose value is "Davide".

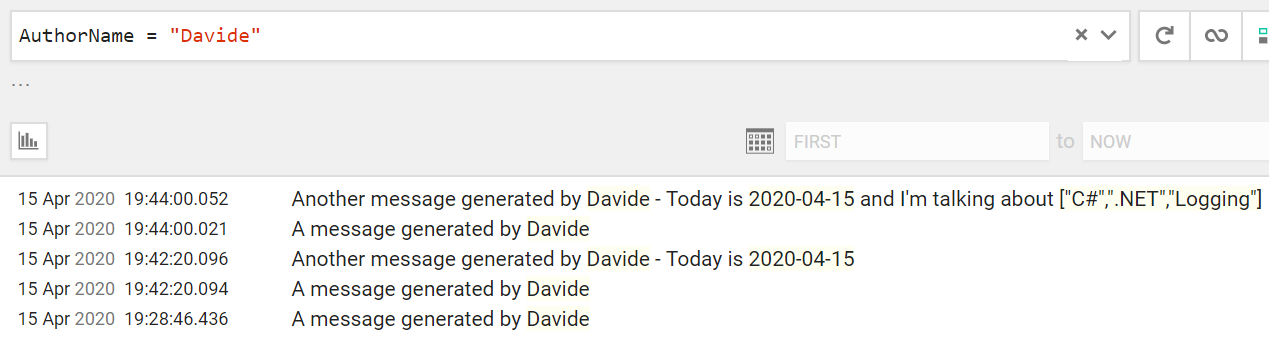

A query on logged properties

Handling exceptions properly

Ok, ok, logging info is fine, but... what about exceptions??

At this point, you might think that you can use string interpolation to store exception details. I don't know, maybe something like:

try
{
   // something that throws an exception, like...
   throw new Exception("This is my exception message");
}
catch (Exception ex)
{
      _logger.Error("An error occurred. {ErrorMessage} - {StackTrace}", ex.Message, ex.StackTrace);

}

That works, but it's not the best idea. The result of this log is hard to read since it's all in the log message:

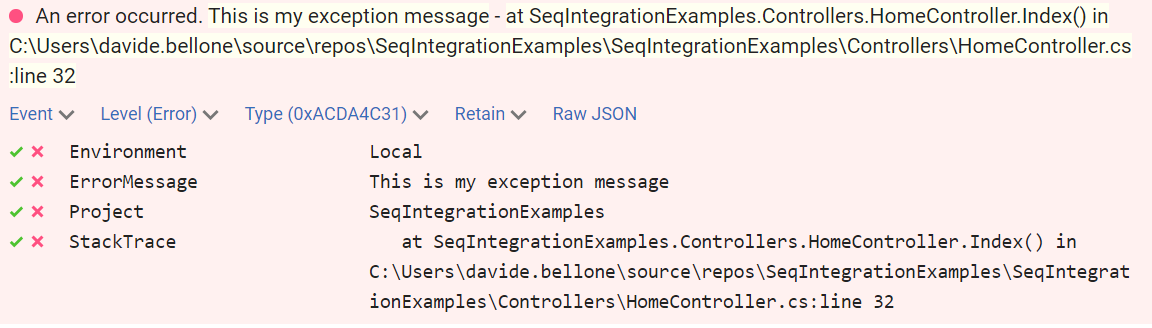

A bad way to log exceptions

Luckily, there is an overload of the Error method that accepts an Exception as a first parameter. So you can write

try
{
   // something that throws an exception, like...
   throw new Exception("This is my exception message");
}
catch (Exception ex)
{
   _logger.Error(ex, "An error occurred.");
}

and have a cleaner message with all the exception details in the log detail.

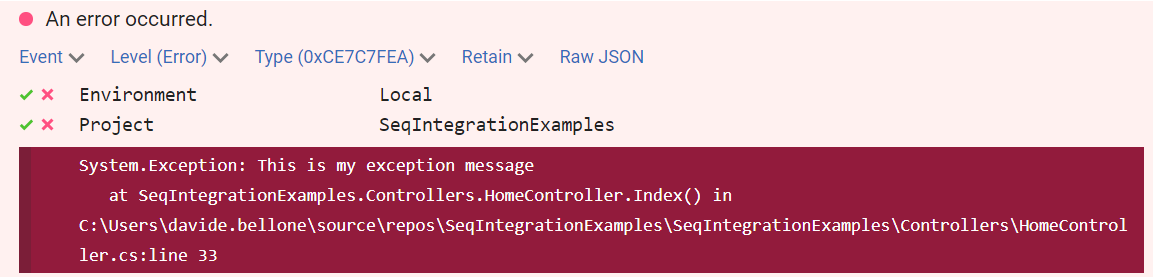

The correct way to log exceptions

Wrapping up

Having a good logging infrastructure is for sure a must-have for every project that must be monitored. The union of Seq as a collector and Serilog as a logging library is very powerful, especially for the combo Structured Data + Queries. With Seq you can also create diagrams to track the overall occurrence of logs of a specific level or with a specific property.

If you want to read more, you should read more on the Serilog documentation on GitHub and have a look at this article by Ben Foster.

What do you use for logging?

Happy coding!
